SANS 1882:2003 | Permit nr:8101/12893
PRODUCT CODES:
COVER: CO117N00BK
FRAME: FR117BK
NOTE: Frames are also sold separately.

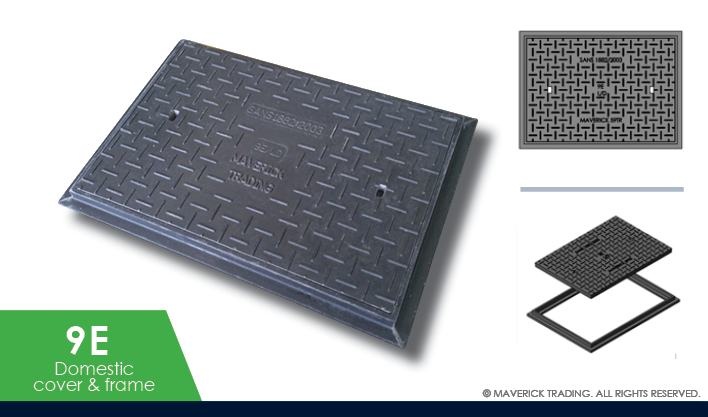

| DESCRIPTION: | 9E Polymer Cover and Frame to Sabs specification Sans 1882/2003 |

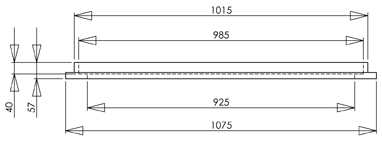

| DIMENSIONS: | 1075 x 775mm for more details refer to drawing |
| WEIGHT: | Frame 13.00kg, Cover 54.8kg |
| FORCE: | 40kn |
| USAGE: | Telecommunication, valve chambers, sewer and stormwater |
| DUTY CLASS: | Medium Duty |
| OPTIONAL: | Stainless Steel, Ms hot dip galvanised & Fibre plastic patented lock and key |
| VARIATIONS: | Cover and frame for new installations Replacement covers for cast iron (stolen) |
| COLOURS: | As per customer requirements |
| COVER BRANDING: | As per customer requirements |
| CURRENT USERS: | All Municipals, Telecommication, civils and plumbers |
COVER: Type 9E |
    |
FRAME:9E |
    |
