SANS 1882:2003 | Permit nr:8101/12893
PRODUCT CODES:
COVER: CO110NL00TB
FRAME: FR110BK
NOTE: Frames are also sold separately.

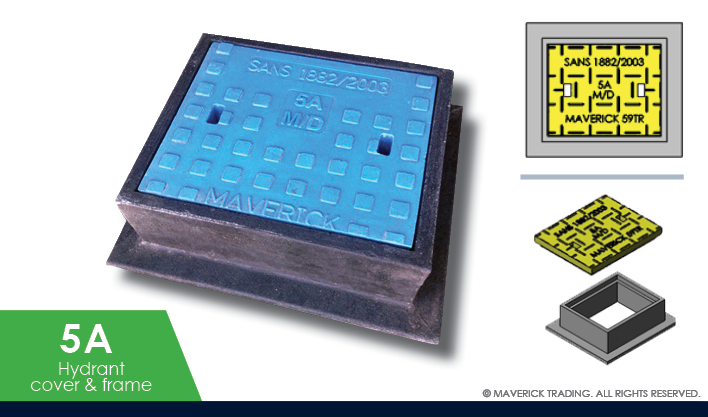

DESCRIPTION: | Type 5 Polymer hydrant cover and frame to SABS specification Sans 1882/2003 |

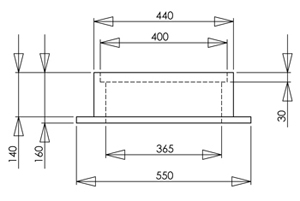

DIMENSIONS: | 395 x 320mm – see drawings for more details |
WEIGHT: | Frame 21.10kg, Cover 10.8kg |
FORCE: | 40kn |
USAGE: | Water and Sanitation ,Water meters, Valves and Hydrants |
DUTY CLASS: | Medium Duty |
OPTIONAL: | Stainless Steel, Ms hot dip Galvinised & Fibre plastic lock and key patented |
VARIATIONS: | Cover and Frame for new installations. Replacement covers for cast iron (stolen) |
COLOURS: | Frame black, cover yellow or to customer requirements |
COVER BRANDING: | As per customer requirements |
CURRENT USERS: | All Municipals and Civils |
COVER: Type 5A |
![]() |
FRAME: Type 5A |
![]() ![]() ![]() ![]() |
